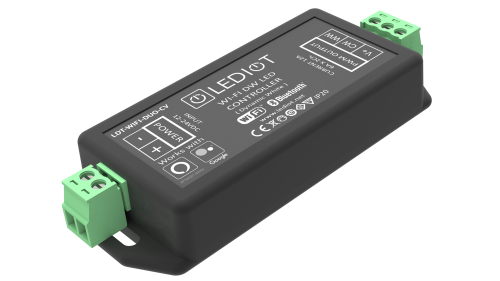

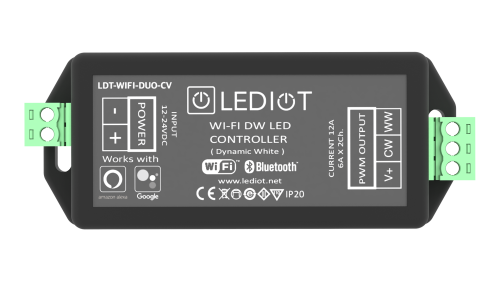

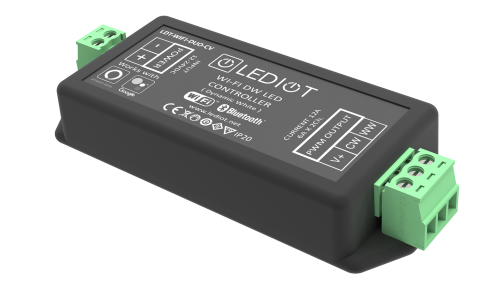

LDT WIFI DUO CV
WIFI & BLUETOOTH Constant Voltage Dual Channel Led Controller
- Wifi & Bluetooth connection
- Input voltage꞉12V to 24V
- Output current ꞉ 6A x 2ch
- Smartphone APP control
- Working with voice control
- Constant Voltage (PWM output)
- Short circuit/Over temperature
- Compact size
- Low cost, high reliability
- 2 years warranty
Easy to manage and schedule wifi product from mobile phone.
 | LDT-WIFI-DUO-CV |
|---|---|
| OUTPUT CURRENT RANGE | 6A x 2ch |
| INPUT VOLTAGE RANGE | 12~ 24VDC |
| OUTPUT POWER (max) | 144W x 2ch |
| CONNECTION | WI-FI 2.4Ghz 802.11 b/g/n – Bluetooth LE V5.2t |
| MOBILE SUPPORT | Android / IOS |
| VOICE CONTROL | Google Home – Alexa – Siri Shortcut |
| OUTPUT SIGNAL | Constant Voltage PWM Signal |
| PWM FREQUENCY | 20KHz |
| WORKING TEMP. | -20 ~ +60℃(Refer to derating curve) |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing |
| EFFICIENCY | 95% at full load and 24VDC input |
| IP RATINGS | IP 20 |
| DIMENSION | 88*35*15mm |
| BODY MATERIAL | ABS Plastic |
LDT WIFI DUO CV - DATASHEET
The file will be forwarded to your e-mail address.
Smart Lighting Solutions
LDT-WIFI-DUO-CV
Automation
Remote Access
Cloud
Voice Control
Planning
Schedule
Scenes
Grouping
